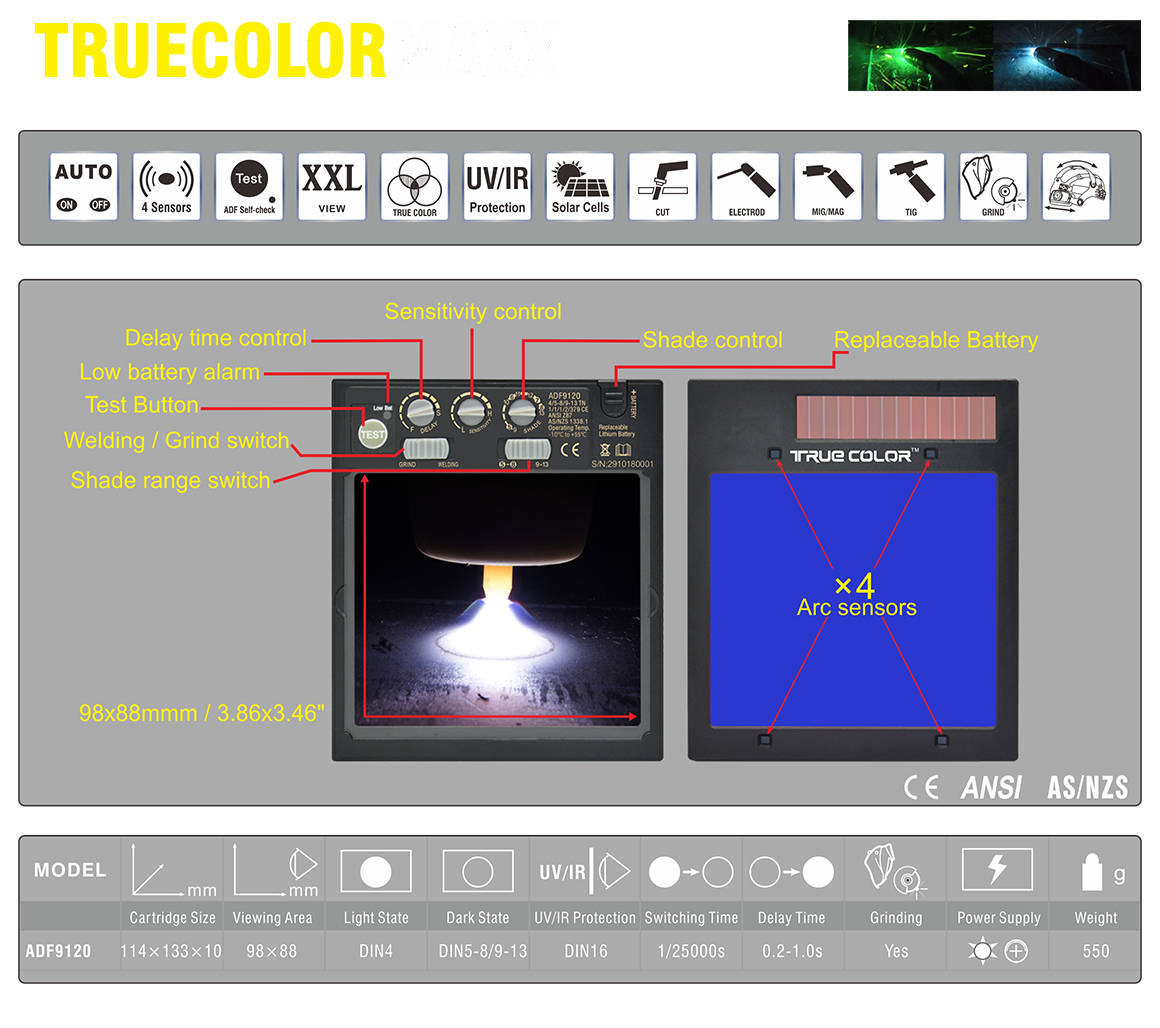

TRUECOLORMAXX
Top Features:
1. True Color Vision Technology.
2. Optical class: 1/1/1/2
3. Shade level control DIN5-8/9-13 with Grinding and Cutting functions
4. View size: 98×88mm (3.86"×3.46")
5. UV/IR protection level: Up to DIN16 at all time
6. 4 independent arc sensors
7. Switching time: 1/25000S
8. Sensitivity control: “Low” to “High”, Stepless adjustment
9. Delay control Dark to Light (sec): 0.2 S (fast) to 1.0 S (slow), Stepless adjustment
10. Low amperage TIG rated: ≥ 5 amps / DC; ≥ 5 amps / AC
11. Application range: Stick Welding (SMAW); TIG DC∾ TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Grinding.
DATA:
| Products Name | TRUECOLORMAXX |
| Order code | TN360.45-9120 |
| Optical class | 1/1/1/2 |
| Filter dimension | 114×133×10mm |
| View size | 98×88mm |
| Light state shade | DIN4 |
| Dark state shade | Variable Shade DIN5-8/9-13, Internal Knob setting |
| Switching time | 1/25000S from Light to Dark |
| Auto recovery time | 0.2 S-1.0S Fast to Slow, Stepless adjustment |
| Sensitivity control | Low to high, Stepless adjustment |
| Arc sensor | 4 |
| Low TIG Amps Rated | AC/DC TIG, > 5 amps |
| GRINDING function | Yes (DIN4) |
| Cuntting shade range | Yes (DIN5-8) |
| ADF Self-check | Yes |
| Low batt | Yes (Red LED) |
| UV/IR protection | Up to DIN16 at all time |
| Powered supply | Solar Cells & Replaceable Lithium battery ( CR450) |
| Power on/off | Full automatic |
| Material | High impact leval, Nylon |
| Operate temp | from -10℃--+55℃ |
| Storing temp | from -20℃--+70℃ |
| Warranty | 2 Years |
| Extra Parts list | 1). 1pcs inside protective lens 2). 1pcs outside protective lens 3). Helmet bag |
